Name: RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement
Brand: Pinnacle Technology Co., Limited
SKU: पीटीसी-ए6080-50डब्ल्यू
Price: 22,238.00 USD
Availability: InStock

घर > उत्पादों > आरएफ शक्ति एम्पलीफायर मॉड्यूल >

RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement

50 watt RF power amplifier module

6 to 8GHz signal jamming amplifier

RF amplifier module for communication measurement

उत्पत्ति के प्लेस:

शेनझेन, चीन

ब्रांड नाम:

PTC

प्रमाणन:

QS,CE

मॉडल संख्या:

पीटीसी-ए6080-50डब्ल्यू

हमसे संपर्क करें

अनुरोध A उद्धरण

उत्पाद का विवरण

प्रमुखता देना:

50 watt RF power amplifier module

6 to 8GHz signal jamming amplifier

RF amplifier module for communication measurement

भुगतान और शिपिंग की शर्तें

न्यूनतम आदेश मात्रा

1 टुकड़ा

मूल्य

Neg

पैकेजिंग विवरण

कार्टन पैकिंग

प्रसव के समय

3-30 दिन

भुगतान शर्तें

वेस्टर्न यूनियन, टी / टी, एल / सी, डी / ए, डी / पी

आपूर्ति की क्षमता

50000/एम

संबंधित उत्पाद

वीडियो

RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement

सबसे अच्छी कीमत पाएं

वीडियो

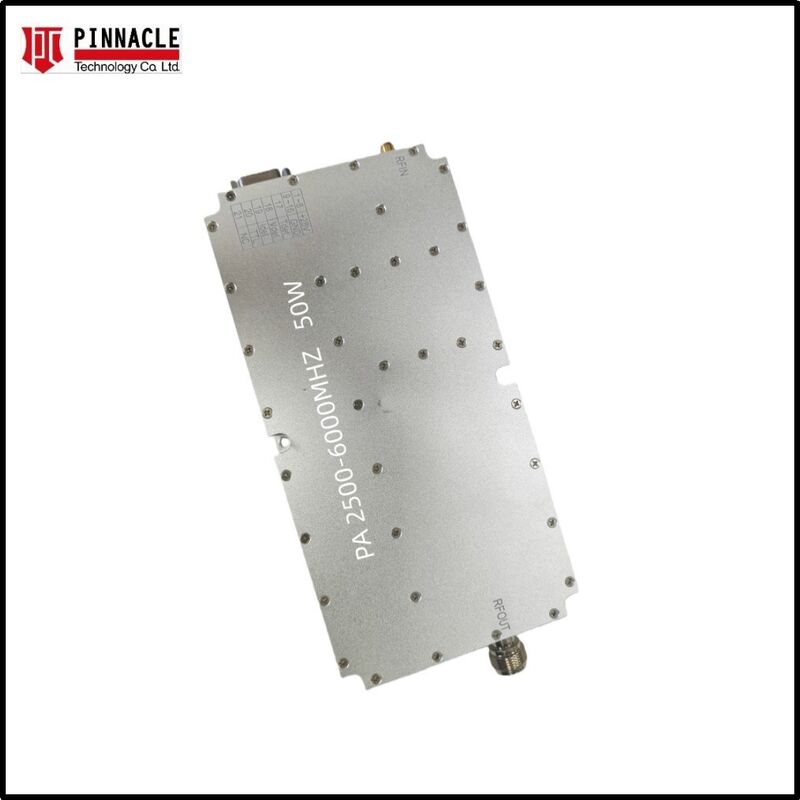

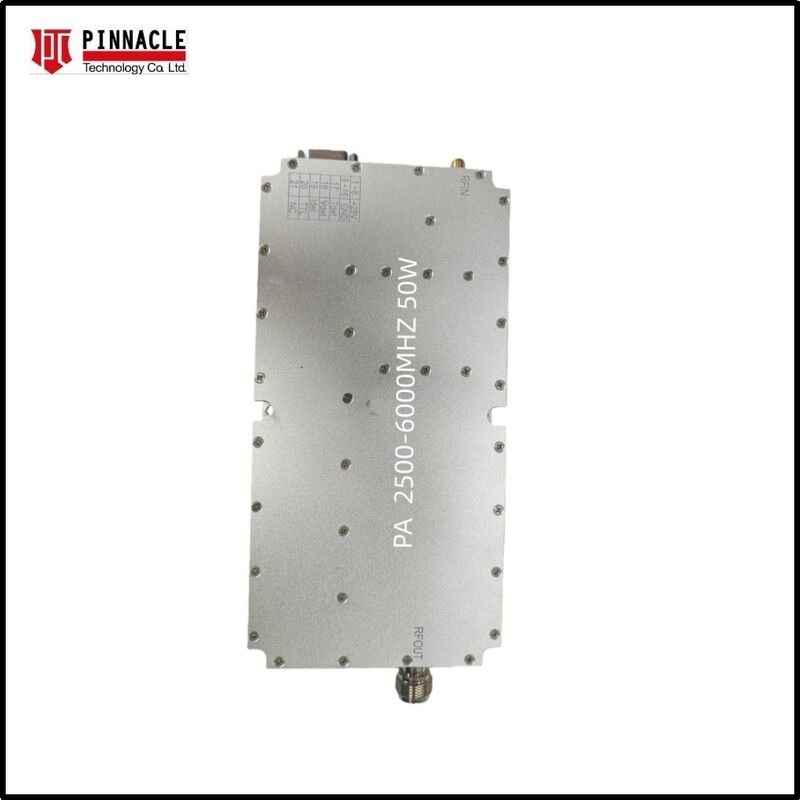

Ultra Wideband RF Power Amplifier Module 2500 to 6000MHz 50W Output Power Suitable for 5G WiFi 6 Satellite and Radar System Applications

सबसे अच्छी कीमत पाएं

वीडियो

400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module

सबसे अच्छी कीमत पाएं

ठोस राज्य 200W उच्च शक्ति 2.4G एम्पलीफायर

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

अब संपर्क करें

उत्पाद का वर्णन

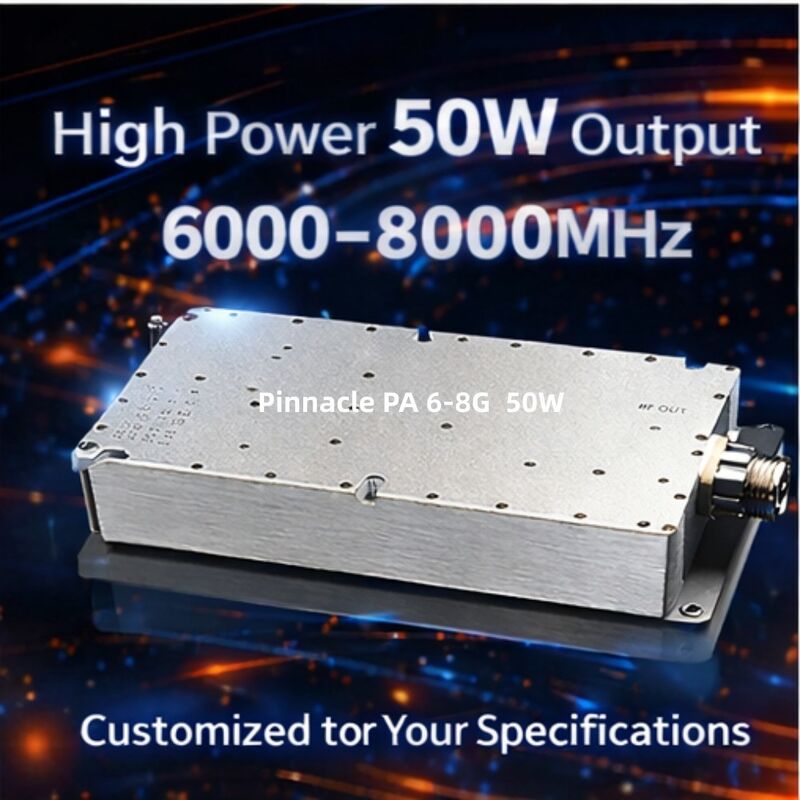

RF Power Amplifier Module - 50W, 6-8GHz

Professional 6-8GHz RF Module with 50W output power, designed for signal jamming, communication systems, and measurement applications.

Product Overview

This 6-8GHz RF Power Amplifier Module delivers 50W output power without requiring an external signal source. Available in multiple frequency ranges including 400-3000MHz, 2500-6000MHz, and 6000-8000MHz RF PA configurations.

Key Features

Ultra-Wideband Performance: Seamless coverage from 400MHz to 3000MHz, eliminating the need for multiple narrow-band amplifiers
Advanced GaN Technology: Utilizes high-efficiency Gallium Nitride on Silicon Carbide (GaN-on-SiC) devices for superior power density and thermal management
Built-in Protection: Integrated circuitry for over-temperature protection and VSWR protection to prevent damage from signal reflection
Compact & Rugged: Precision-machined aluminum alloy chassis designed to withstand harsh industrial and military environments
Customizable: Frequency range and output power can be customized per customer requirements

Applications

Electronic Countermeasures (ECM): Ideal for signal jamming and broad-spectrum interference systems
Test & Measurement: Reliable lab-grade power source for EMC testing and antenna measurements
Communication Systems: High-power booster for 5G, Wi-Fi 6, and satellite ground stations
Radar Systems: Pulse and CW (Continuous Wave) applications for modern radar detection

Technical Specifications

Parameter	Specification
Frequency Range	6-8GHz
Output Power (P_sat)	≥50W
Gain	≥50dB
In-band Gain Flatness	≤5.0dB
Working Current	≤5.5A
Connector	SMA-Female
Power Supply & Control Interface	DB7W2
VCC Power Supply & Maximum Voltage	+28V, +32V
Dimension	180×90×25mm (excluding connectors)
Net Weight	1kg
Power Supply Wire	Red+Black+Enable wire
Working Temperature	-40℃ to +55℃
